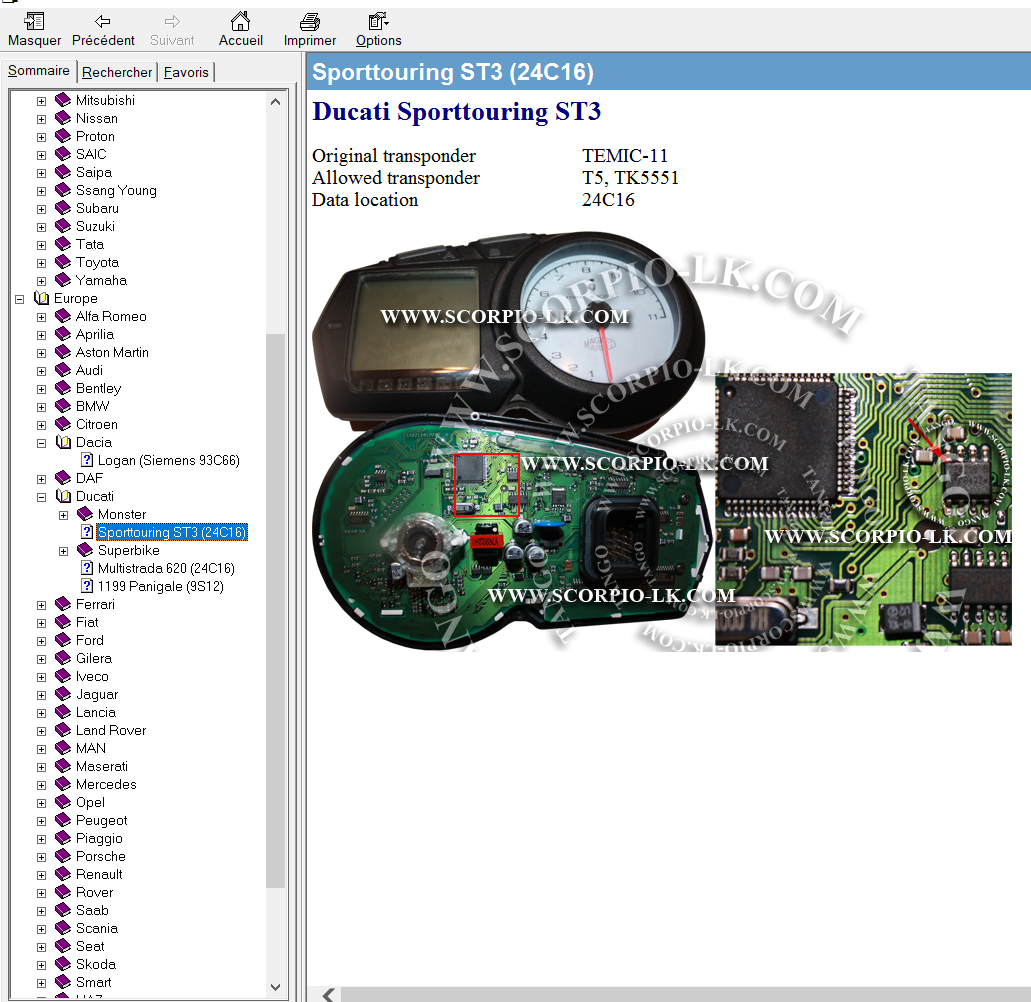

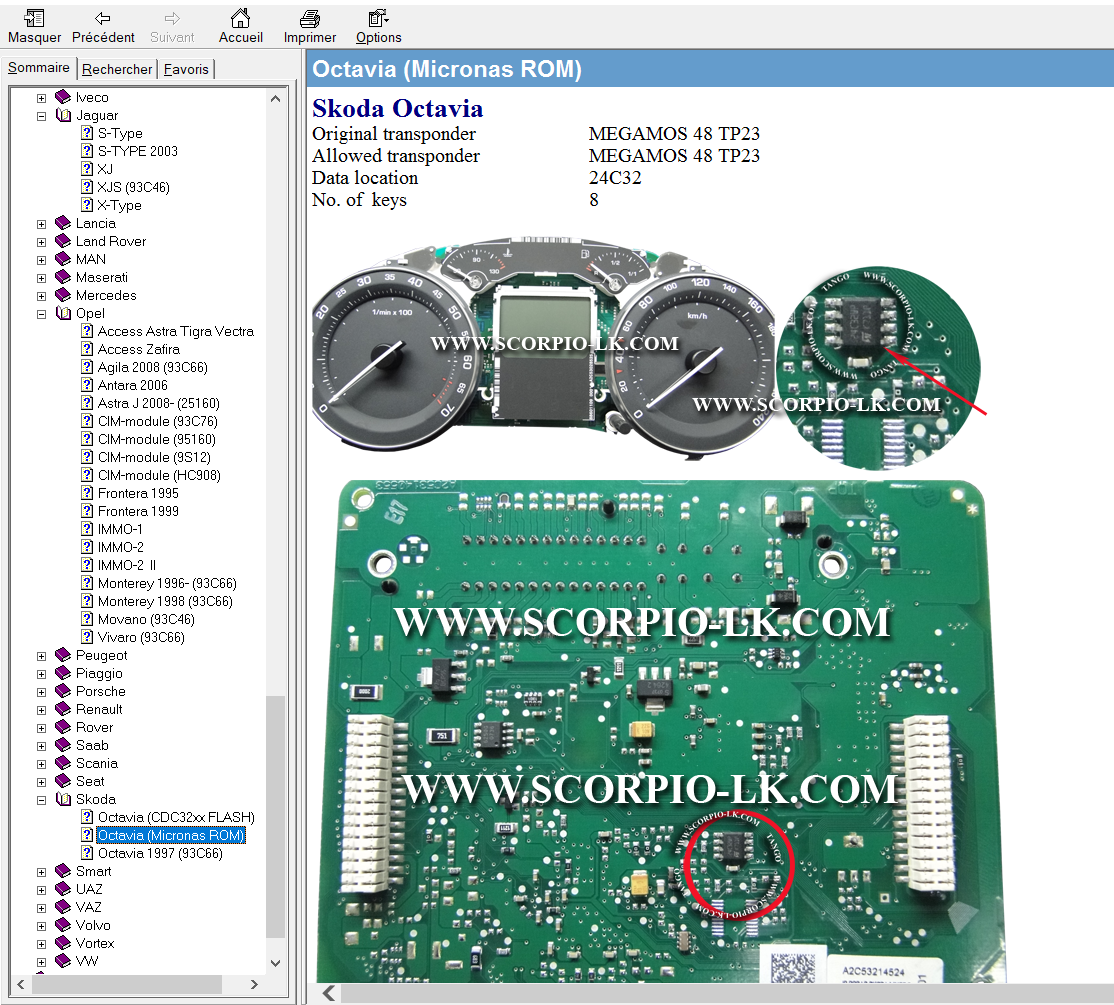

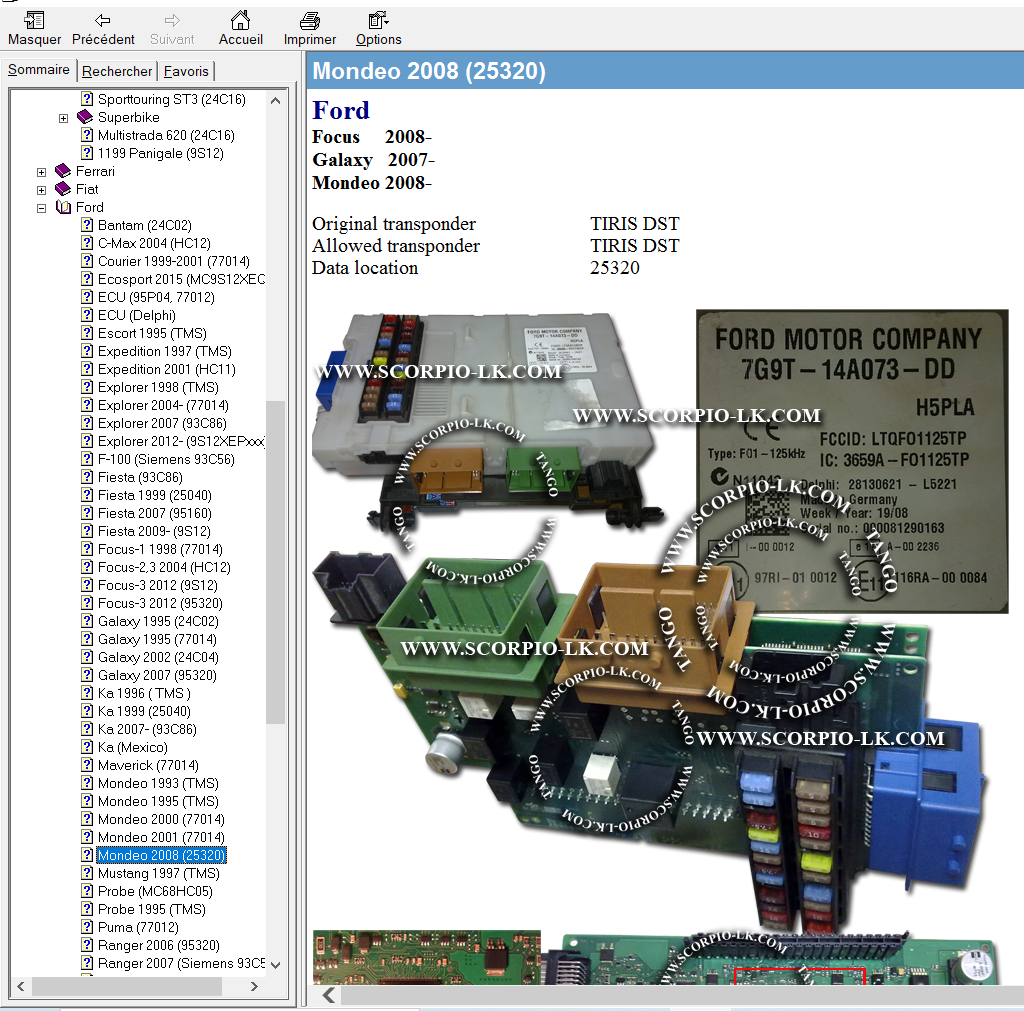

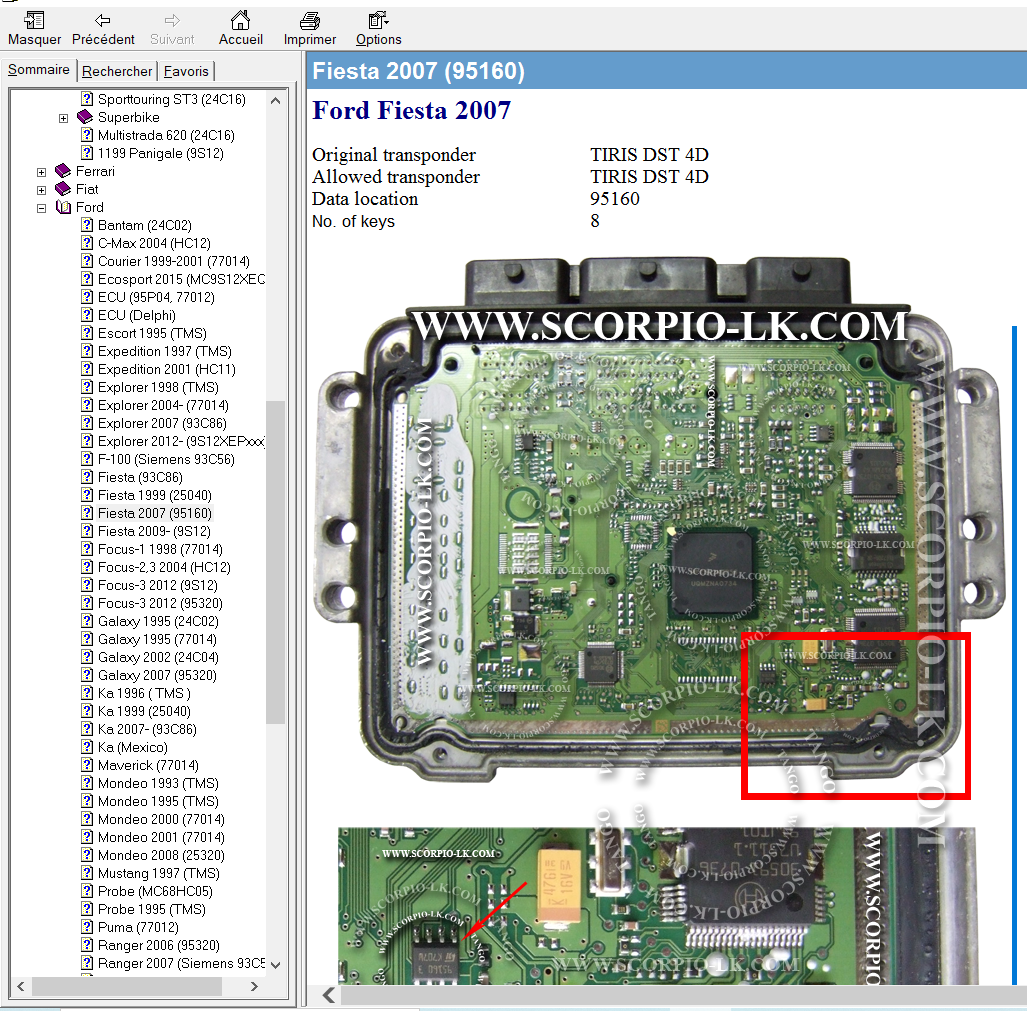

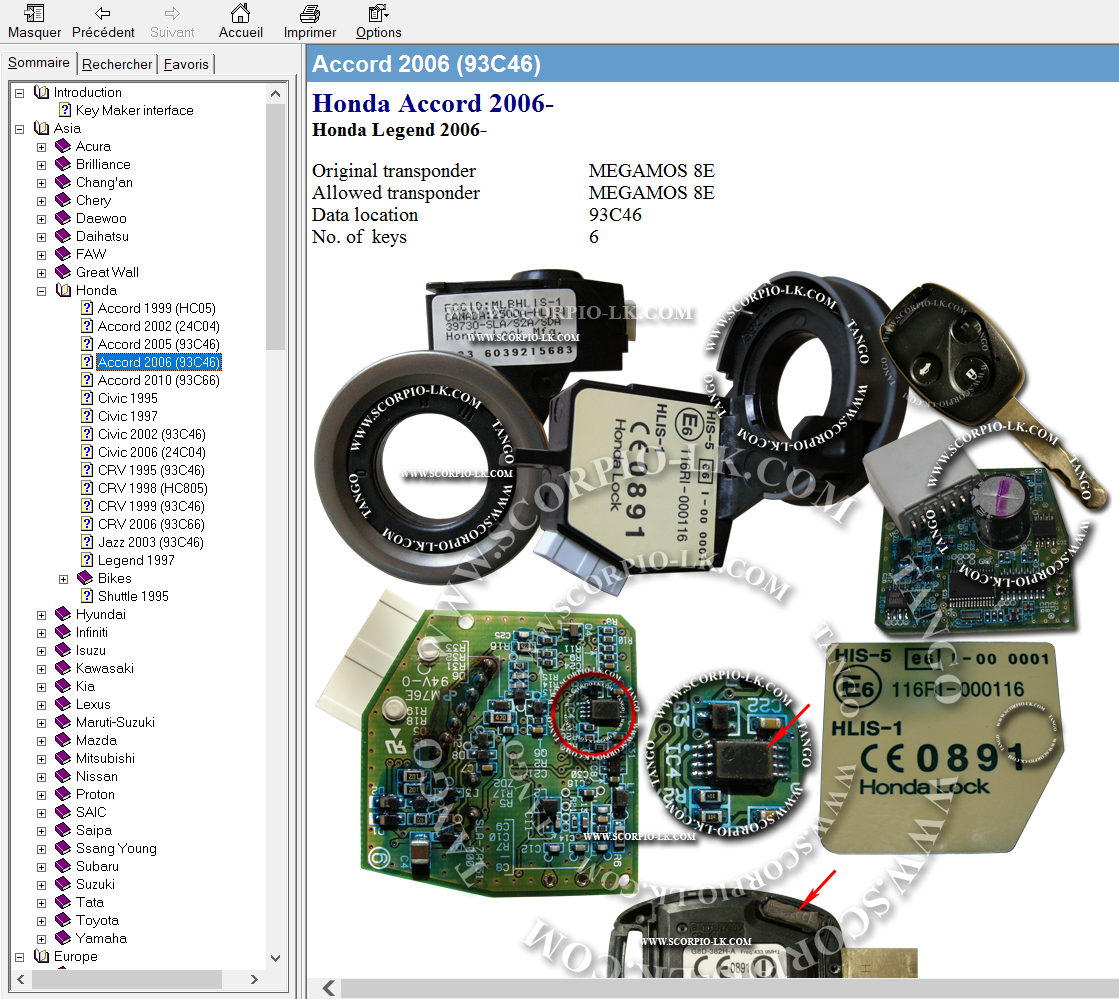

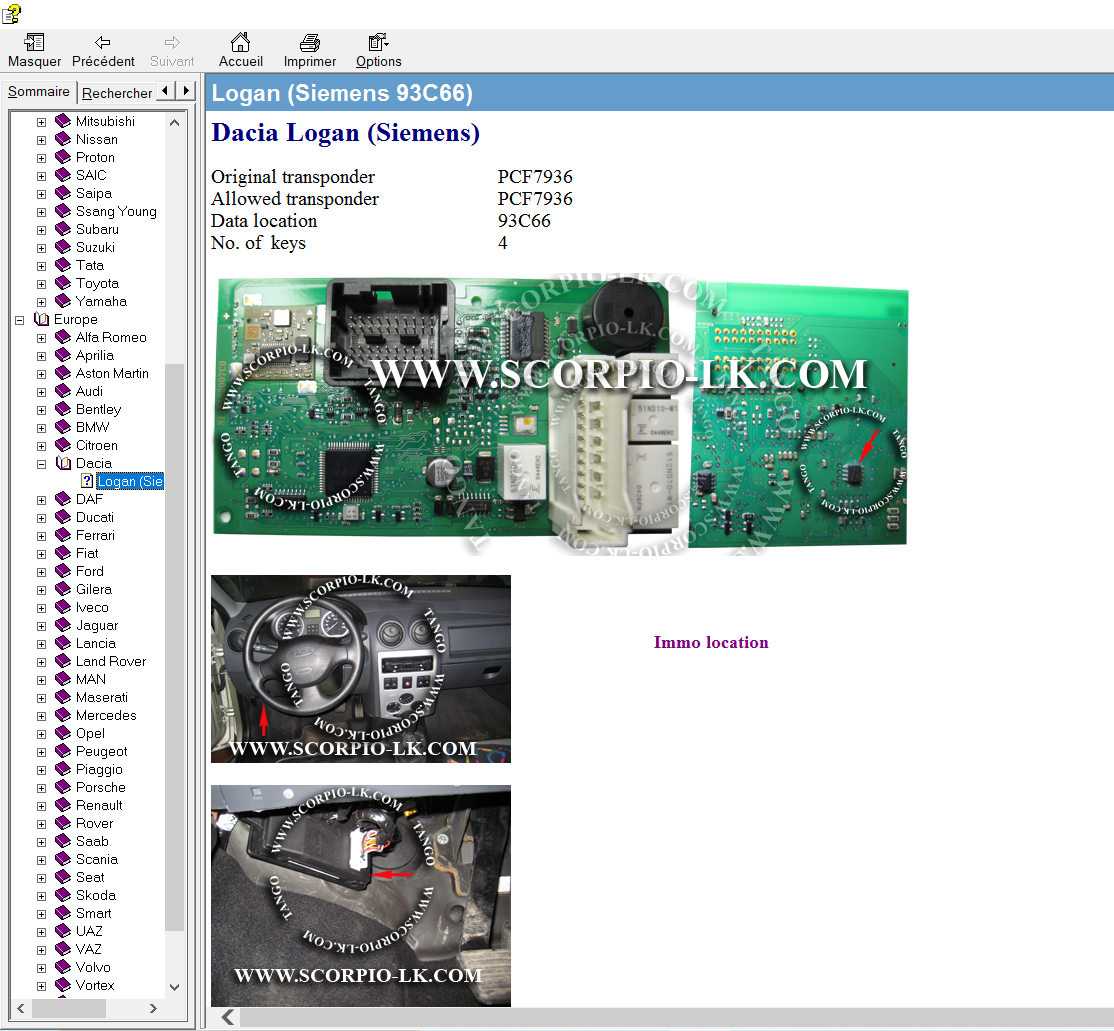

This downloadable PDF is a practical, step-by-step manual for technicians and locksmiths. It explains how to find the Data Location field, identify the memory chip inside the immobilizer, and read the chip contents safely and correctly. The guide includes clear screenshots and examples so you can locate chip types and addresses before using Tango Maker or other reading tools.
Features:
-
Detailed explanation of the Data Location field and how it maps to chip memory.
-
How to identify the memory chip inside various immobilizer modules.
-
Step-by-step instructions to read the chip data (EEPROM / flash) safely.
-
Illustrated screenshots and practical examples.
-
Advice on common pitfalls and verification steps.
Package Content:
-
1 PDF file: Tango Maker User Manual / Guide (contains chip identification & reading procedures)
Requirements & Notes:
-
Knowledge of basic ECU/immobilizer handling recommended.
-
You may need an external programmer or bench reader to physically read chips (not included).
-
Always follow safety and legal rules when reading immobilizer data — use only on vehicles you own or have explicit permission to work on.
